U Union Stright AISI316L Lok Fitting
U Union Stright AISI316L Lok Fitting
|

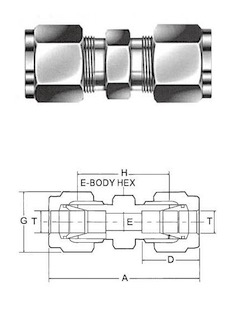

EQUAL UNION |
|
|
|
|
|
| |
|
METRIC |
|
|
|
|
|
|
|
|
Item No |
Tube O.D. |
A |
D |
E |
F |
G |
H |
|
U-2 |
2 |
35.6 |
12.9 |
1 |
10 |
10 |
22.4 |
|
U-3 |
3 |
35.3 |
12.9 |
2 |
10 |
10 |
22.1 |
|
U-4 |
4 |
37.3 |
13.7 |
3 |
12 |
12 |
24.1 |
|
U-6 |
6 |
41 |
15.3 |
4 |
12 |
14 |
26.2 |
|
U-8 |
8 |
43.2 |
16.2 |
6 |
14 |
17 |
28.2 |
|
U-10 |
10 |
46.2 |
17.2 |
8 |
19 |
19 |
31 |
|
U-12 |
12 |
51.2 |
22.8 |
10 |
22 |
22 |
31 |
|
U-14 |
14 |
52 |
24.4 |
10 |
24 |
27 |
31.8 |
|
U-15 |
15 |
52 |
24.4 |
11 |
24 |
27 |
31.8 |
|
U-16 |
16 |
52 |
24.4 |
12 |
24 |
27 |
31.8 |
|
U-18 |
18 |
53.5 |
24.4 |
14 |
27 |
30 |
33.3 |
|
U-20 |
20 |
55 |
26 |
16 |
30 |
32 |
34.8 |
|
U-22 |
22 |
55 |
26 |
18 |
30 |
32 |
34.8 |
|
U-25 |
25 |
65 |
31.3 |
21 |
35 |
38 |
40.4 |
| FRACTIONAL | |||||||
|
Item No |
Tube O.D. |
A |
D |
E |
F |
G |
H |
|
U-005 |
1/16 |
25.1 |
8.6 |
1 |
10 |
10 |
17.5 |
|
U-01 |
1/8 |
35.6 |
12.7 |
2 |
10 |
10 |
22.4 |
|
U-015 |
3/16 |
37.3 |
13.7 |
3 |
12 |
12 |
24.1 |
|
U-02 |
1/4 |
40.9 |
15.2 |
4 |
12 |
14 |
26.2 |
|
U-03 |
3/8 |
45 |
16.8 |
7 |
17 |
17 |
30.2 |
|
U-04 |
1/2 |
51.3 |
22.9 |
10 |
22 |
22 |
31 |
|
U-05 |
5/8 |
52.1 |
24.4 |
12 |
24 |
27 |
31.8 |
|
U-06 |
3/4 |
53.6 |
24.4 |
15 |
27 |
30 |
33.3 |
|
U-08 |
1 |
64.8 |
31.2 |
21 |
35 |
38 |
40.4 |
