RUBT AISI316L Lok Fitting
RUBT AISI316L Lok Fitting

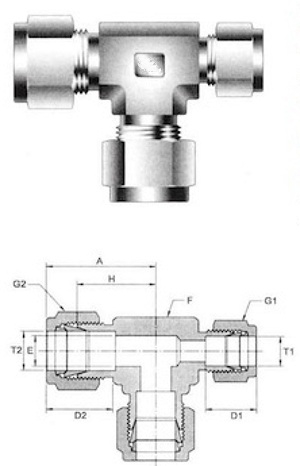

| TEE UNION | ||||||||||
| METRIC | ||||||||||
|
Item No |
TUBE O.D. |
A |
D1 |
D2 |
E |
F |
G1 |
G2 |
H | |
|
T1 |
T2 | |||||||||
|
RUBT-03-02 |
1/4 |
3/8 |
30.5 |
15.2 |
19.3 |
4.8 |
15.87 |
14.28 |
17.46 |
21.3 |
|
RUBT-04-02 |
1/4 |
1/2 |
36.1 |
15.2 |
21.8 |
4.8 |
20.63 |
14.28 |
20.63 |
25.9 |
|
RUBT-04-03 |
3/8 |
1/2 |
36.1 |
16.8 |
21.8 |
7 |
20.63 |
17.46 |
20.63 |
25.9 |
|
RUBT-05-03 |
3/8 |
5/8 |
38.9 |
16.8 |
21.8 |
7 |
25.4 |
17.46 |
25.4 |
28.7 |
|
RUBT-06-03 |
3/8 |
3/4 |
39.9 |
16.8 |
21.8 |
7 |
26.98 |
17.46 |
28.57 |
29.7 |
|
RUBT-06-04 |
1/2 |
3/4 |
39.9 |
22.9 |
21.8 |
10 |
26.98 |
22.22 |
28.57 |
29.7 |
|
RUBT-08-03 |
3/8 |
1 |
49 |
16.8 |
26.4 |
7 |
34.92 |
17.46 |
38.1 |
36.8 |
|
RUBT-08-04 |
1/2 |
1 |
49 |
22.9 |
26.4 |
10 |
34.92 |
22.22 |
38.1 |
36.8 |
|
RUBT-08-06 |
3/4 |
1 |
49 |
24.4 |
26.4 |
16 |
34.92 |
28.57 |
38.1 |
36.8 |
