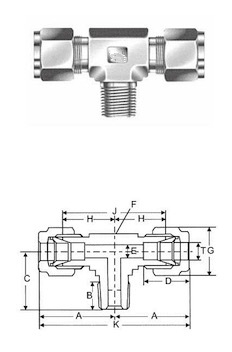

MBT Stainless Steel Lok Fitting
| METRIC | ||||||||||||
|
Item No |
Tube O.D. |
Male Pipe Size |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
|
T |
PT-NPT | |||||||||||
|
MBT4-01 |
4 |
1/8 |
25.4 |
10 |
19.1 |
13.7 |
3 |
12 |
12 |
18.8 |
37.8 |
50.8 |
|
MBT4-02 |
4 |
1/4 |
25.4 |
13 |
22.2 |
13.7 |
3 |
14 |
12 |
18.8 |
37.6 |
50.8 |
|
MBT6-01 |
6 |
1/8 |
27 |
10 |
19.1 |
15.3 |
5 |
12 |
14 |
19.6 |
39.2 |
54 |
|
MBT6-02 |
6 |
1/4 |
27 |
13 |
22.2 |
15.3 |
5 |
14 |
14 |
19.6 |
39.2 |
54 |
|
MBT6-03 |
6 |
3/8 |
29.8 |
14 |
26 |
15.3 |
5 |
17 |
14 |
22.4 |
44.8 |
59.6 |
|
MBT6-04 |
6 |
1/2 |
31.8 |
17 |
31 |
5.3 |
5 |
22 |
14 |
24.4 |
48.8 |
63.6 |
|
MBT8-01 |
8 |
1/8 |
28.8 |
10 |
30.1 |
16.2 |
6 |
14 |
17 |
21.3 |
42.6 |
57.6 |
|
MBT8-02 |
8 |
1/4 |
28.8 |
13 |
23.2 |
16.2 |
6 |
14 |
17 |
21.3 |
42.6 |
57.6 |
|
MBT8-03 |
8 |
3/8 |
30.6 |
14 |
26 |
16.2 |
6 |
17 |
17 |
21.3 |
46.2 |
61.2 |
|
MBT8-04 |
8 |
1/2 |
32.6 |
17 |
31 |
16.2 |
6 |
22 |
17 |
23.1 |
50.2 |
65.2 |
|
MBT10-01 |
10 |
1/8 |
31.5 |
10 |
21.9 |
17.2 |
8 |
17 |
19 |
25.1 |
47.8 |
63 |
|
MBT10-02 |
10 |
1/4 |
31.5 |
13 |
25 |
17.2 |
8 |
17 |
19 |
23.9 |
47.8 |
63 |
|
MBT10-03 |
10 |
3/8 |
31.5 |
14 |
26 |
17.2 |
8 |
17 |
19 |
23.9 |
47.8 |
63 |
|
MBT10-04 |
10 |
1/2 |
33.5 |
17 |
31 |
17.2 |
8 |
22 |
19 |
25.9 |
51.8 |
67 |
|
MBT12-01 |
12 |
1/8 |
36 |
10 |
25.7 |
22.8 |
10 |
22 |
22 |
25.9 |
51.8 |
72 |
|
MBT12-02 |
12 |
1/4 |
36 |
13 |
27 |
22.8 |
10 |
22 |
22 |
25.9 |
51.8 |
72 |
|
MBT12-03 |
12 |
3/8 |
36 |
14 |
28 |
22.8 |
10 |
22 |
22 |
25.9 |
51.8 |
72 |
|
MBT12-04 |
12 |
1/2 |
36 |
17 |
31 |
22.8 |
10 |
22 |
22 |
25.9 |
51.8 |
72 |
|
MBT12-06 |
12 |
3/4 |
39.8 |
19 |
36.8 |
22.8 |
10 |
27 |
22 |
29.7 |
59.4 |
79.6 |
|
MBT12-08 |
12 |
1 |
45.3 |
22 |
45.2 |
22.8 |
10 |
35 |
22 |
35.2 |
70.4 |
90.6 |
|
MBT14-03 |
14 |
3/8 |
38 |
14 |
29 |
24.4 |
10 |
24 |
27 |
27.9 |
55.8 |
76 |
|
MBT14-04 |
14 |
1/2 |
38 |
17 |
33.1 |
24.4 |
10 |
24 |
27 |
27.9 |
55.8 |
76 |
|
MBT14-06 |
14 |
3/4 |
39.8 |
19 |
36.8 |
24.4 |
10 |
27 |
27 |
29.7 |
59.4 |
79.6 |
|
MBT15-03 |
15 |
3/8 |
38 |
14 |
29 |
24.4 |
11 |
24 |
27 |
27.9 |
55.8 |
76 |
|
MBT15-04 |
15 |
1/2 |
38 |
17 |
33.1 |
24.4 |
11 |
24 |
27 |
29.7 |
55.8 |
76 |
|
MBT15-06 |
15 |
3/4 |
39.8 |
19 |
36.8 |
24.4 |
11 |
27 |
27 |
27.9 |
59.4 |
79.6 |
|
MBT16-03 |
16 |
3/8 |
38 |
14 |
29 |
24.4 |
12 |
24 |
27 |
27.9 |
55.8 |
76 |
|
MBT16-04 |
16 |
1/2 |
38 |
17 |
33.1 |
24.4 |
12 |
24 |
27 |
27.9 |
55.8 |
76 |
|
MBT16-06 |
16 |
3/4 |
39.8 |
19 |
36.8 |
24.4 |
12 |
27 |
27 |
29.7 |
59.4 |
79.6 |
|
MBT18-03 |
18 |
3/8 |
39.8 |
14 |
32.5 |
24.4 |
14 |
27 |
30 |
29.7 |
59.4 |
79.6 |
|
MBT18-04 |
18 |
1/2 |
39.8 |
17 |
34.8 |
24.4 |
14 |
27 |
30 |
29.7 |
59.4 |
79.6 |
|
MBT18-06 |
18 |
3/4 |
39.8 |
19 |
36.8 |
24.4 |
14 |
27 |
30 |
29.7 |
59.4 |
79.6 |
|
MBT20-04 |
20 |
1/2 |
44.6 |
17 |
39.7 |
26 |
16 |
30 |
32 |
34.5 |
69 |
89.2 |
|
MBT20-06 |
20 |
3/4 |
44.6 |
19 |
41.7 |
26 |
16 |
30 |
32 |
34.5 |
69 |
89.2 |
|
MBT22-04 |
22 |
1/2 |
44.6 |
17 |
39.7 |
26 |
18 |
30 |
32 |
34.5 |
69 |
89.2 |
|
MBT22-06 |
22 |
3/4 |
44.6 |
19 |
41.7 |
26 |
18 |
30 |
32 |
34.5 |
69 |
89.2 |
|
MBT25-04 |
25 |
1/2 |
49.1 |
17 |
39.7 |
31.3 |
21 |
35 |
38 |
36.8 |
73.6 |
98.2 |
|
MBT25-06 |
25 |
3/4 |
49.1 |
19 |
41.7 |
31.3 |
21 |
35 |
38 |
36.8 |
73.6 |
98.2 |
|
MBT25-08 |
25 |
1 |
49.1 |
22 |
41.5 |
31.1 |
21 |
35 |
38 |
36.8 |
73.6 |
98.2 |
| FRACTIONAL | ||||||||||||
|
Item No |
Tube O.D. |
Male Pipe Size |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
|
T |
PT-NPT | |||||||||||
|
MBT-01-01 |
1/8 |
1/8 |
23.6 |
10 |
18.1 |
12.7 |
3 |
12 |
12 |
17 |
34 |
47.2 |
|
MBT-01-02 |
1/8 |
1/4 |
24.6 |
13 |
22.2 |
12.7 |
3 |
14 |
12 |
18 |
36 |
49.2 |
|
MBT-02-01 |
1/4 |
1/8 |
27 |
10 |
19.1 |
15.2 |
3 |
12 |
14 |
19.6 |
39.2 |
54 |
|
MBT-02-02 |
1/4 |
1/4 |
27 |
13 |
22.2 |
15.2 |
5 |
14 |
14 |
19.6 |
39.2 |
54 |
|
MBT-02-03 |
1/4 |
3/8 |
29.8 |
14 |
26 |
15.2 |
5 |
17 |
14 |
22.4 |
44.8 |
59.6 |
|
MBT-02-04 |
1/4 |
1/2 |
31.8 |
17 |
31 |
15.2 |
5 |
22 |
14 |
24.4 |
48.8 |
63.6 |
|
MBT-03-01 |
3/8 |
1/8 |
30.5 |
10 |
21.1 |
16.8 |
8 |
17 |
17 |
21.3 |
42.6 |
61 |
|
MBT-03-02 |
3/8 |
1/4 |
30.5 |
13 |
24.2 |
16.8 |
8 |
17 |
17 |
21.3 |
42.6 |
61 |
|
MBT-03-03 |
3/8 |
3/8 |
31.2 |
14 |
26 |
16.8 |
8 |
17 |
17 |
23.1 |
46.2 |
62.4 |
|
MBT-03-04 |
3/8 |
1/2 |
33.3 |
14 |
31 |
16.8 |
8 |
22 |
17 |
26 |
52 |
66.6 |
|
MBT-04-01 |
1/2 |
1/8 |
36 |
10 |
25.7 |
22.8 |
10 |
22 |
22 |
25.9 |
51.8 |
72 |
|
MBT-04-02 |
1/2 |
1/4 |
36 |
13 |
27 |
22.8 |
10 |
22 |
22 |
25.9 |
51.8 |
72 |
|
MBT-04-03 |
1/2 |
3/8 |
36 |
14 |
28 |
22.8 |
10 |
22 |
22 |
25.9 |
51.8 |
72 |
|
MBT-04-04 |
1/2 |
1/2 |
36 |
17 |
31 |
22.8 |
10 |
22 |
22 |
25.9 |
51.8 |
72 |
|
MBT-04-06 |
1/2 |
3/4 |
39.8 |
19 |
36.8 |
22.8 |
10 |
27 |
22 |
29.7 |
59.4 |
79.6 |
|
MBT-04-08 |
1/2 |
1 |
45.3 |
22 |
45.2 |
22.8 |
10 |
35 |
22 |
35.2 |
70.4 |
90.6 |
|
MBT-05-03 |
5/8 |
3/8 |
38.1 |
14 |
30 |
24.4 |
12 |
24 |
27 |
27.9 |
55.8 |
76.2 |
|
MBT-05-04 |
5/8 |
1/2 |
38.1 |
17 |
33.1 |
24.4 |
12 |
24 |
27 |
27.9 |
55.8 |
76.2 |
|
MBT-05-06 |
5/8 |
3/4 |
40 |
19 |
36.8 |
24.4 |
12 |
27 |
27 |
29.7 |
59.4 |
80 |
|
MBT-06-06 |
3/4 |
3/4 |
40.5 |
19 |
36.8 |
24.4 |
15 |
27 |
30 |
29.7 |
59.4 |
81 |
|
MBT-08-06 |
1 |
3/4 |
49 |
19 |
41.7 |
31.3 |
21 |
35 |
38 |
36.8 |
73.6 |
98 |
|
MBT-08-08 |
1 |
1 |
49 |
22 |
44.5 |
31.3 |
21 |
35 |
38 |
36.8 |
73.6 |
98 |
