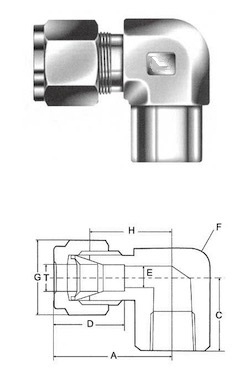

FE Stainless Steel Elbow Lok Fitting
| METRIC | |||||||||
|
Item No |
Tube O.D. |
Male Pipe Size |
A |
C |
D |
E |
F |
G |
H |
|
T |
PT-NPT | ||||||||
|
FE6-01 |
6 |
1/8 |
27 |
19.1 |
15.3 |
5 |
14 |
14 |
19.6 |
|
FE6-02 |
6 |
1/4 |
29.8 |
22.4 |
15.3 |
5 |
17 |
14 |
22.4 |
|
FE6-03 |
6 |
3/8 |
34.6 |
22.4 |
15.3 |
5 |
22 |
14 |
27.4 |
|
FE6-04 |
6 |
1/2 |
37.7 |
26.4 |
15.3 |
5 |
27 |
14 |
30.3 |
|
FE8-01 |
8 |
1/8 |
29.3 |
20 |
16.2 |
6 |
14 |
17 |
21.8 |
|
FE8-02 |
8 |
1/4 |
30.6 |
22.4 |
16.2 |
6 |
17 |
17 |
23.1 |
|
FE8-03 |
8 |
3/8 |
34 |
27.7 |
16.2 |
6 |
22 |
17 |
26.5 |
|
FE8-04 |
8 |
1/2 |
36.8 |
31.7 |
16.2 |
6 |
27 |
17 |
29.3 |
|
FE10-01 |
10 |
1/8 |
31.5 |
19 |
17.2 |
8 |
17 |
19 |
23.9 |
|
FE10-02 |
10 |
1/4 |
33.5 |
22.4 |
17.2 |
8 |
17 |
19 |
25.9 |
|
FE10-03 |
10 |
3/8 |
37.5 |
27.7 |
17.2 |
8 |
17 |
19 |
29.9 |
|
FE10-04 |
10 |
1/2 |
40.3 |
31.7 |
17.2 |
8 |
22 |
19 |
32.7 |
|
FE12-01 |
12 |
1/8 |
36 |
22.4 |
22.8 |
10 |
22 |
22 |
25.9 |
|
FE12-02 |
12 |
1/4 |
36 |
22.4 |
22.8 |
10 |
22 |
22 |
25.9 |
|
FE12-03 |
12 |
3/8 |
36 |
22.4 |
22.8 |
10 |
22 |
22 |
29.9 |
|
FE12-04 |
12 |
1/2 |
38.8 |
28.4 |
22.8 |
10 |
27 |
22 |
28.7 |
|
FE12-06 |
12 |
3/4 |
41.8 |
32.4 |
22.8 |
10 |
32 |
22 |
31.7 |
|
FE14-03 |
14 |
3/8 |
39.8 |
25.4 |
24.4 |
10 |
27 |
27 |
29.7 |
|
FE14-04 |
14 |
1/2 |
39.8 |
28.4 |
24.4 |
10 |
27 |
27 |
29.7 |
|
FE14-06 |
14 |
3/4 |
42.8 |
32.4 |
24.4 |
10 |
32 |
27 |
32.7 |
|
FE15-03 |
15 |
3/8 |
39.8 |
25.4 |
24.4 |
11 |
27 |
27 |
29.7 |
|
FE15-04 |
15 |
1/2 |
39.8 |
28.4 |
24.4 |
11 |
27 |
27 |
29.7 |
|
FE15-06 |
15 |
3/4 |
42.8 |
32.4 |
24.4 |
11 |
32 |
27 |
32.7 |
|
FE16-03 |
16 |
3/8 |
39.8 |
25.4 |
24.4 |
12 |
27 |
27 |
29.7 |
|
FE16-04 |
16 |
1/2 |
39.5 |
28.4 |
24.4 |
12 |
27 |
27 |
29.7 |
|
FE16-06 |
16 |
3/4 |
42.8 |
32.4 |
24.4 |
12 |
32 |
27 |
32.7 |
|
FE18-03 |
18 |
3/8 |
40.5 |
25.4 |
24.4 |
14 |
27 |
30 |
30.4 |
|
FE18-04 |
18 |
1/2 |
40.5 |
28.4 |
24.4 |
14 |
27 |
30 |
30.4 |
|
FE18-06 |
18 |
3/4 |
43.5 |
32.4 |
24.4 |
14 |
32 |
30 |
33.4 |
|
FE20-04 |
20 |
1/2 |
43.5 |
31.4 |
26 |
16 |
32 |
32 |
33.4 |
|
FE20-06 |
20 |
3/4 |
46.5 |
35.4 |
26 |
16 |
32 |
32 |
36.4 |
|
FE22-04 |
22 |
1/2 |
43.5 |
31.4 |
26 |
18 |
32 |
32 |
33.4 |
|
FE22-06 |
22 |
3/4 |
46.5 |
35.4 |
26 |
18 |
32 |
32 |
36.4 |
|
FE25-04 |
25 |
1/2 |
47.5 |
33.4 |
31.5 |
21 |
34 |
38 |
35.2 |
|
FE25-06 |
25 |
3/4 |
50.5 |
37.4 |
31.5 |
21 |
34 |
38 |
38.2 |
| FRACTIONAL | |||||||||
|
Item No |
Tube O.D. |
Male Pipe Size |
A |
C |
D |
E |
F |
G |
H |
|
T |
PT-NPT | ||||||||
|
FE-02-01 |
1/4 |
1/8 |
27 |
19.1 |
15.3 |
5 |
14 |
14 |
19.6 |
|
FE-02-02 |
1/4 |
1/4 |
29.7 |
22.4 |
15.3 |
5 |
17 |
14 |
22.4 |
|
FE-02-03 |
1/4 |
3/8 |
32.6 |
22.4 |
15.3 |
5 |
22 |
14 |
27.2 |
|
FE-02-04 |
1/4 |
1/2 |
37.7 |
28.4 |
15.3 |
5 |
27 |
14 |
30.3 |
|
FE-03-01 |
3/8 |
1/8 |
30.5 |
19.8 |
16.8 |
7 |
17 |
17 |
23.1 |
|
FE-03-02 |
3/8 |
1/4 |
31.2 |
22.4 |
16.8 |
7 |
17 |
17 |
24 |
|
FE-03-03 |
3/8 |
3/8 |
33.3 |
22.4 |
16.8 |
7 |
22 |
17 |
26 |
|
FE-03-04 |
3/8 |
1/2 |
36.1 |
28.4 |
16.8 |
7 |
27 |
17 |
28.7 |
|
FE-04-01 |
1/2 |
1/8 |
36 |
22.4 |
22.8 |
10 |
22 |
22 |
25.9 |
|
FE-04-02 |
1/2 |
1/4 |
36.1 |
22.4 |
22.8 |
10 |
22 |
22 |
26 |
|
FE-04-03 |
1/2 |
3/8 |
36.1 |
22.4 |
22.8 |
10 |
22 |
22 |
26 |
|
FE-04-04 |
1/2 |
1/2 |
39 |
28.4 |
22.8 |
10 |
27 |
22 |
28.7 |
|
FE-04-06 |
1/2 |
3/4 |
41.8 |
32.4 |
22.8 |
10 |
32 |
22 |
31.7 |
|
FE-05-06 |
5/8 |
3/4 |
42.8 |
32.4 |
24.4 |
12 |
32 |
27 |
32.7 |
|
FE-06-04 |
3/4 |
1/2 |
39.9 |
28.4 |
24.4 |
15 |
27 |
30 |
29.7 |
|
FE-06-06 |
3/4 |
3/4 |
44.7 |
32.4 |
24.4 |
15 |
32 |
30 |
34.5 |
|
FE-08-06 |
1 |
3/4 |
49 |
32.4 |
31.3 |
21 |
34 |
38 |
36.8 |
