AISI316 Speed Controller
1.Medium: Air, Steam, Water and another liquid
2.Working Pressure: -1000kpa-1.2Mpa
3.Test Pressure: 3Mpa
4.Medium Temperature: -5-200℃

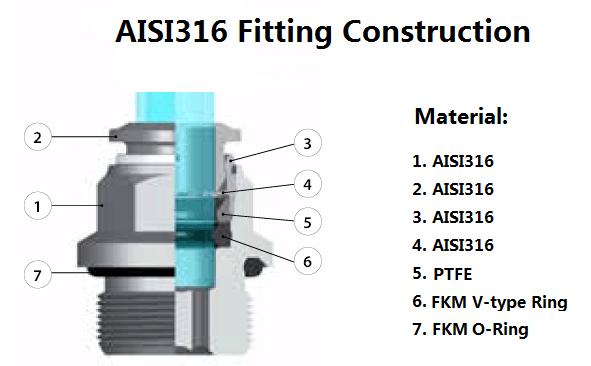

5.Lubrication: Silicon Oil(Pls note if without lubrication)
6.Seal Material:FKM
7.Thread Seal:None Seal(G thread with O-ring)
2.Working Pressure: -1000kpa-1.2Mpa
3.Test Pressure: 3Mpa
4.Medium Temperature: -5-200℃
5.Lubrication: Silicon Oil(Pls note if without lubrication)
6.Seal Material:FKM
7.Thread Seal:None Seal(G thread with O-ring)
AISI316 Speed Controller
Beside MM-PT(G), we also supply Inch-NPT size.
|

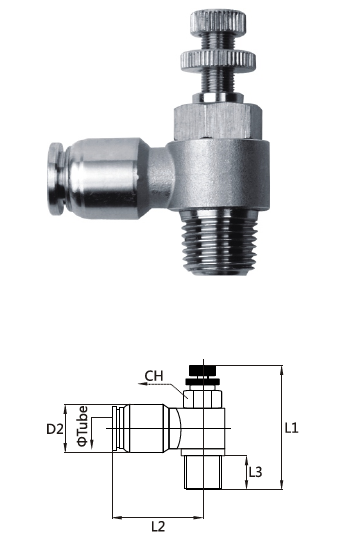

Model | Tube | L1 | L2 | L3 | D2 | CH | |
| JS-NSE-04-01 | 4 | 34.5 | 28 | 7.5 | 10.5 | 12 | ||
| JS-NSE-04-02 | 4 | 43 | 28 | 9.5 | 10.5 | 14 | ||
| JS-NSE-06-01 | 6 | 34.5 | 28 | 7.5 | 12.5 | 12 | ||
| JS-NSE-06-02 | 6 | 43 | 28 | 9.5 | 12.5 | 14 | ||
| JS-NSE-08-01 | 8 | 34.5 | 30 | 7.5 | 14.5 | 12 | ||
| JS-NSE-08-02 | 8 | 43 | 30 | 9.5 | 14.5 | 14 | ||
| JS-NSE-08-03 | 8 | 47.3 | 33 | 10.5 | 14.5 | 19 | ||
| JS-NSE-08-04 | 8 | 51 | 33 | 12.5 | 14.5 | 22 | ||
| JS-NSE-10-02 | 10 | 43 | 32.5 | 9.5 | 17.5 | 14 | ||
| JS-NSE-10-03 | 10 | 47.3 | 35 | 10.5 | 17.5 | 19 | ||
| JS-NSE-10-04 | 10 | 51 | 35 | 12.5 | 17.5 | 22 | ||
| JS-NSE-12-02 | 12 | 43 | 36 | 9.5 | 20.5 | 14 | ||
| JS-NSE-12-03 | 12 | 47.3 | 38 | 10.5 | 20.5 | 19 | ||
| JS-NSE-12-04 | 12 | 51 | 38 | 12.5 | 20.5 | 22 |
