Union Tee Brass Push in Fitting

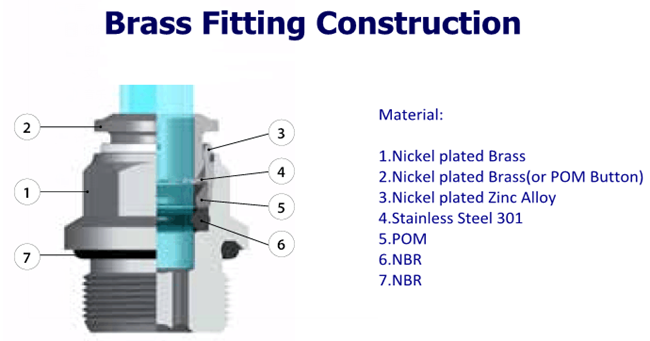

This's whole series Fittings are made of brass. Not only the body but also the sleeve, both of them are made from Brass. All of them are good for flame resistance, heat resistance and splash performance.
Union Tee Brass Push in Fitting
Beside MM-PT(G), we also supply Inch-NPT size.
|

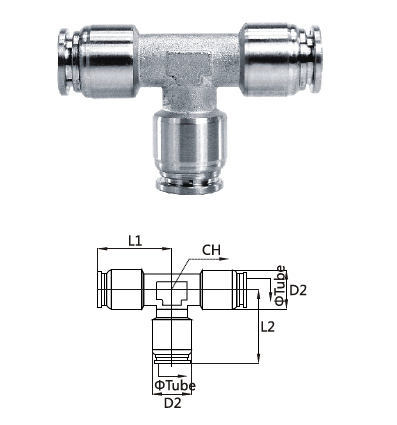

Model | Tube | L1 | L2 | D2 | CH | |
| JB-PE04 | 4 | 23 | 23 | 4 | 9.2 | ||
| JB-PE06 | 6 | 24 | 24 | 6 | 9.2 | ||
| JB-PE08 | 8 | 27 | 27 | 8 | 11.2 | ||
| JB-PE10 | 10 | 30.5 | 30.5 | 10 | 13.2 | ||
| JB-PE12 | 12 | 34 | 34 | 12 | 15.5 | ||
| JB-PE14 | 14 | 37 | 37 | 14 | 20.6 | ||
| JB-PE16 | 16 | 38 | 38 | 16 | 20.6 |
